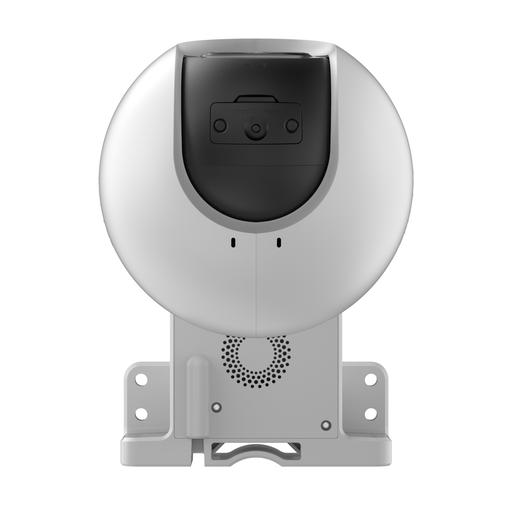

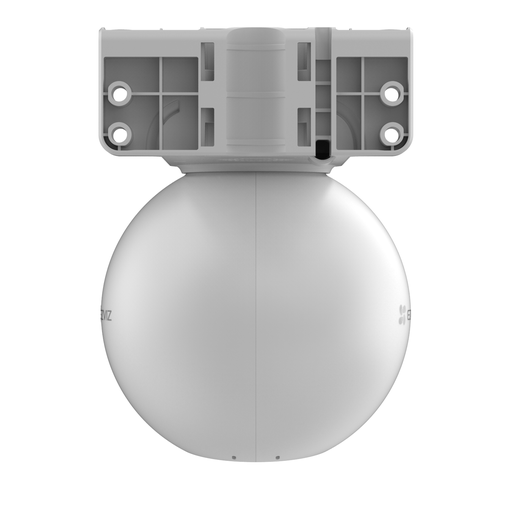

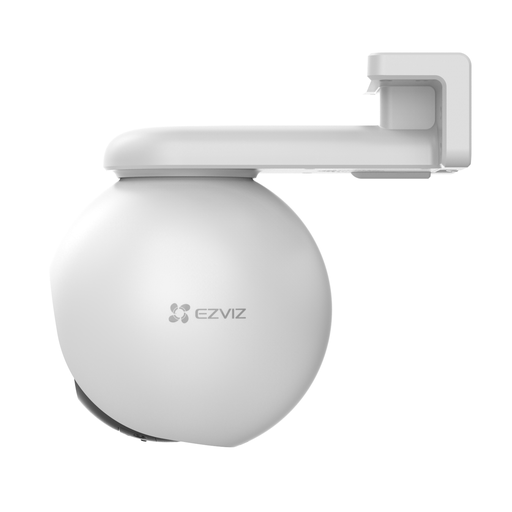

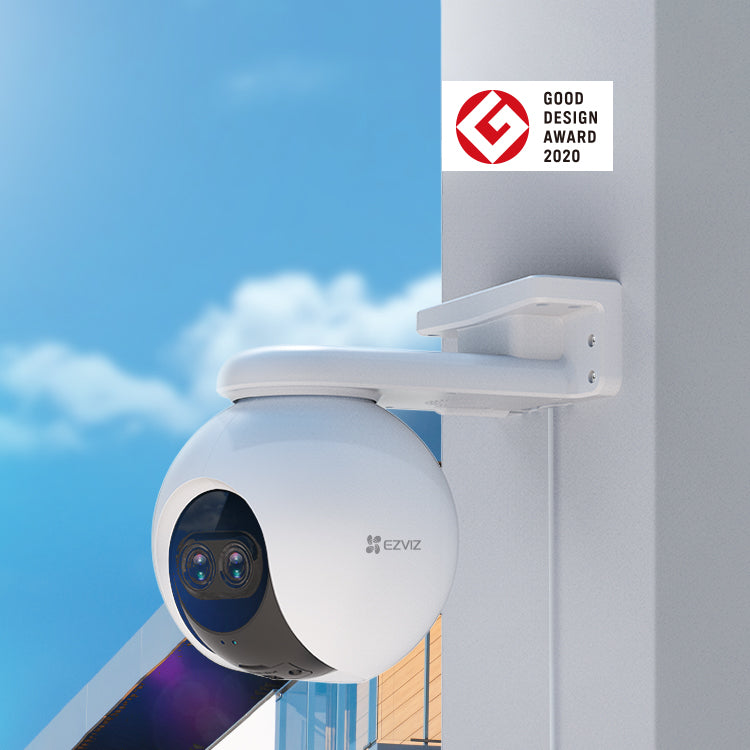

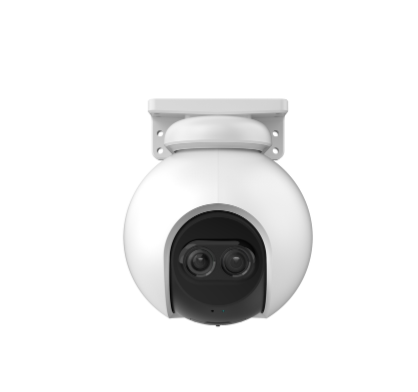

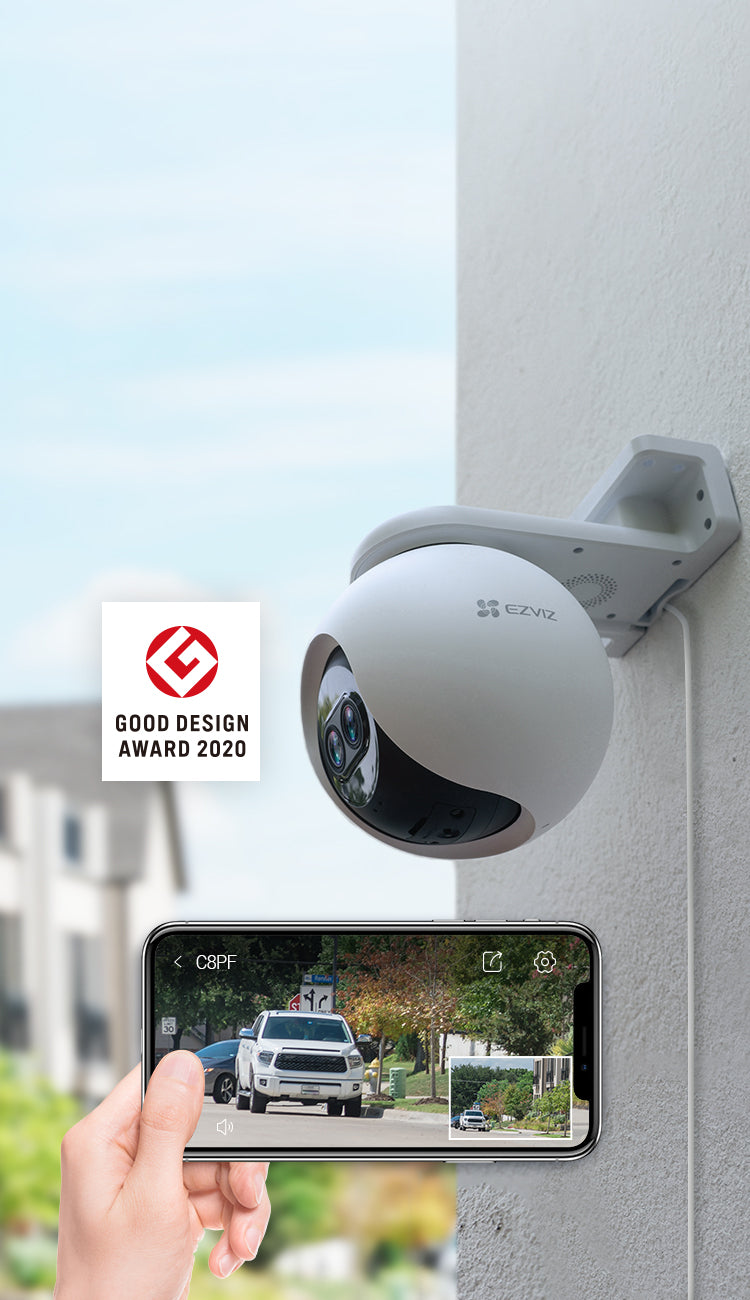

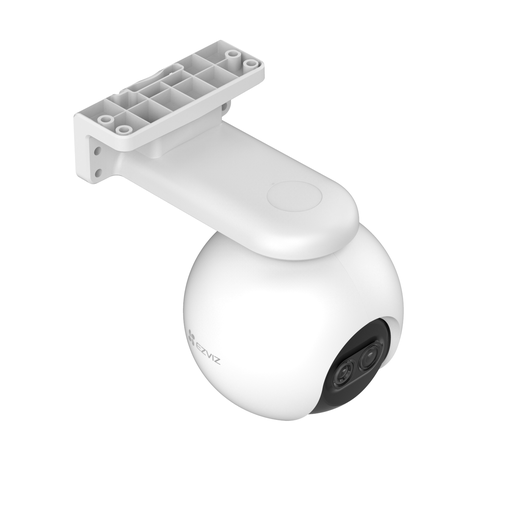

EZVIZ C8PF Dual-Lens Pan & Tilt Wi-Fi Camera

Specifications

Model CS-C8PF (1080P)

Camera

Image sensor Dual-1/2.7" Progressive Scan CMOS

Shutter Speed Self-adaptive shutter

Lens 2.8 mm @ F1.6 + 12 mm @ F1.6

PT Angle Pan: 340°, Tilt: 80°

Minimum Illumination 0.05Lux @ (F1.6 AGC ON), 0 Lux with IR

Lens Mount M12

Day & Night IR-cut filter with auto switching

DNR 3D DNR

WDR Digital WDR

BLC Supports

Black & White Night 30 m/ 98 ft

Video & Audio

Max Resolution 1920 × 1080

Frame Rate Max. 15fps, self-adaptive during network transmission

Video Compression H.265 / H.264

H.265 Type Main profile

Video Bit Rate Full HD; HD; Standard. Adaptive bit rate.

Audio Bit Rate Self-Adaptive

Max. Bitrate 2Mbps

Network

Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n

Frequency Range 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports 20MHz

Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate 11b: 11Mbps,11g :54Mbps,11n :72Mbps

Wi-Fi Pairing AP pairing

Protocol EZVIZ Cloud Proprietary Protocol

Interface Protocol EZVIZ Cloud Proprietary Protocol

Wired Network RJ45 × 1(10M/100M Adaptive Ethernet Port)

Function

Smart Alarm AI-powered Human Shape Detection

Customized Alert Area Supports

Audio Supports mic

General Function Anti-flicker, dual-stream, heart beat, password protection, watermark

Storage

Local Storage MicroSD card slot (Max. 512GB)

Cloud Storage EZVIZ cloud storage

General

Operating Conditions -30ºC to 60ºC (14°F to 113°F), humidity 95% or less (non-condensing)

IP Grade Weatherproof design

Power Supply DC 12V / 1A

Power Consumption MAX. 12W

Dimensions 154 × 116 × 164 mm (6.06 × 4.57 × 6.46 inch)

Packaging Dimensions 197 × 185 × 205 mm (7.76 × 7.28 × 8.07 inch)

Weight Product: 578 g (20.39 oz)

With package: 938 g (33.09 oz)

In the box

In the box - C8PF Camera

- 1.5-Meter Power Adapter

- Screw Kit

- Waterproof Kit

- Drill Template

- Regulatory Information

- Quick Start Guide

Certifications

Certifications UL / FCC / CE / WEEE / REACH/ ROHS
