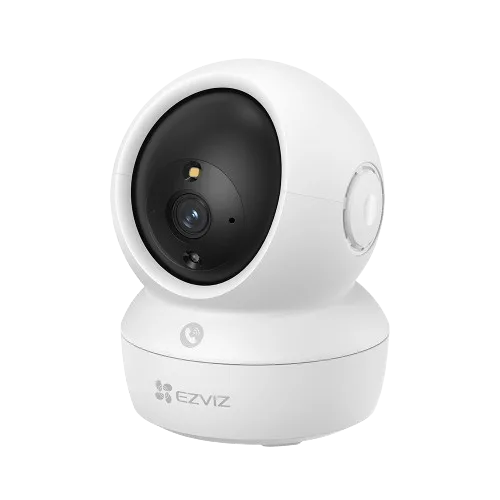

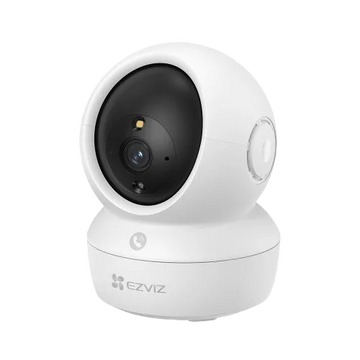

EZVIZ H6c Pro 2k type-c Pan & Tilt Smart Home Camera

Specifications

Model CS-H6c-R105-1L3WF

Camera

Image Sensor 1/2.7" Progressive Scan CMOS

Shutter Speed Self-adaptive shutter

Lens 4mm @ F1.6, viewing angle: 82° (Horizontal), 48° (Vertical), 98° (Diagonal)

Lens Mount M12

Day & Night IR-cut filter with auto-switching

DNR 3D DNR

WDR Digital WDR

Compression

Video Compression H.264/H.265

Video Bit Rate Adaptive bit rate.


Max. Resolution 2304 × 1296

Frame Rate Self-Adaptive during network transmission

Network

Smart Alarm Motion Detection, Human Shape Detection, Loud Noise Detection

Wi-Fi Pairing AP paring

Protocol EZVIZ Cloud Proprietary Protocol

Interface Protocol EZVIZ Cloud Proprietary Protocol

Interface

Storage Supports microSD card (Up to 512 G)

Power TYPE-C

Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

Standard IEEE802.11b, 802.11g, 802.11n

Frequency Range 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports 20MHz

Security WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps

Output Power(EIRP) 19 dBm

Antenna Gain 1.9 dBi

General

Operating Conditions -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)

Power Supply DC 5V/1A

Power Consumption 5W max

IR Range MAX. 10 meters (33ft)

Dimensions 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)

Packaging Dimensions 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)

Bare Weight 218g (0.48lb)

In the box

In the box - Camera

- Power Adapter

- Power Cable

- Drill Template

- Mounting Plate

- EZVIZ Screw Kit

- Regulatory Information

- Quick Start Guide

Certifications

Certifications CE / UKCA / WEEE / RoHS / REACH / UL
