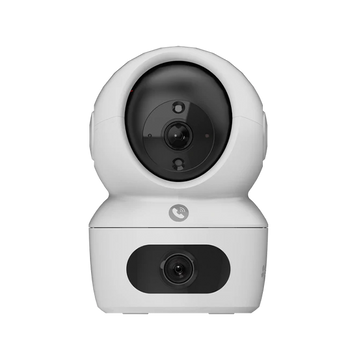

EZVIZ H7c Dual 2K+ & 2K+ Dual-Lens Pan & Tilt Wi-Fi Camera

Specifications

Model CS-H7c-R100-8G44WF

Camera

Resolution Dual 2K+ Resolution

Image Sensor 1/3" Progressive Scan CMOS

Shutter Speed Self-adaptive shutter

Fixed Lens 2.8mm@F1.6 , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical)

PT Lens 6mm@F1.6 , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical)

Lens Mount M12

Day & Night IR-cut filter with auto-switching

DNR 3D DNR

WDR Digital WDR

Compression

Video Compression H.264/H.265

Video Bit Rate Adaptive bit rate.

Network

Smart Alarm Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection

Wi-Fi Pairing AP paring

Protocol EZVIZ cloud proprietary protocol

Interface Protocol EZVIZ cloud proprietary protocol


Max. Resolution 2560 × 1440

Frame Rate Max:30fps; Self-Adaptive during network transmission

Interface

Storage Micro SD card slot (Max. 512G)

Power TYPE-C

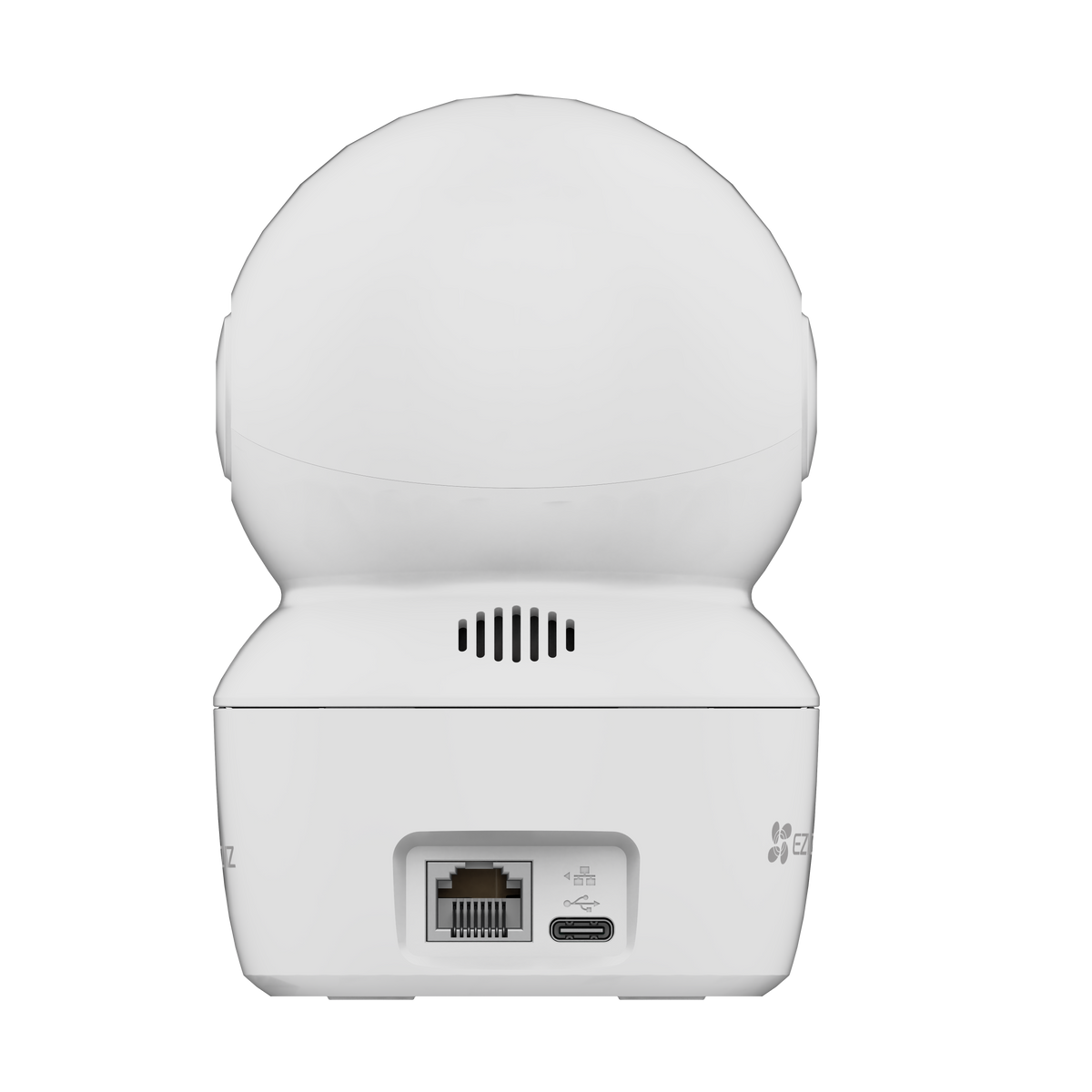

Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

Standard IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax

Frequency Range 2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz

Channel Bandwidth 2.4GHz Supports 20MHz 5GHz Supports 80MHz

Security WPA-PSK, WPA2-PSK, WPA3-Personal

Transmission Rate 2.4GHz Max. Rate Support: 11b_11M，11g_54M, 11n_MCS7_20M，11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M，11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M

Output Power(EIRP) 20 dBm

Antenna Gain 2.56dBi@2.48GHz，3.18dBi@5.22GHz

General

Operating Conditions -10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing)

Power Consumption 8W max

Power Supply DC 5V/2A

IR Range MAX. 10 meters (32.81ft)

Dimensions 88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in)

Package Dimensions 200 ×105 ×105 mm (7.87 × 4.13 × 4.13 in)

Net Weight 270 g (9.52 oz)

Bare Weight 499 g (17.60 oz)

In the box

In the box - Camera (x1)

- Power Adapter (x1)

- Power Cable (x1)

- Drill Template (x1)

- Mounting Plate (x1)

- Screw Kit (x1)

- Regulatory Information (x1)

- Quick Start Guide (x1)

Certifications

Certifications CE / UKCA / WEEE / RoHS / REACH / UL
