EZVIZ HP5 1080p Smart video Doorphone

Specifications

Model CS-HP5-R100-1W2TFC

Outdoor Doorbell

Image Sensor 1/2.7" Progressive Scan CMOS (Supports low light sensitivity)

Lens 2.0 mm @ F1.6,viewing angle: 134° (Diagonal)

Day & Night IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)

Max. Resolution 1920 × 1080 (1080p)

DNR 2D / 3D DNR

Video Compression H.265 / H.264

Frame Rate Max: 15fps; Self-Adaptive during network transmission

Connection and Function

Connection Method Wired connection (2-Wired, capable with 4-Wired), digital signal transmission

Transmission Distance Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m

Open the door (Gate) Support 2 wiring ports. 1-10m distance. The intercom panel provides a "dry"-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A

Unlock (Electric strike plate) Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.

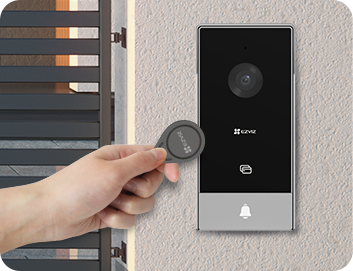

Door Open Methods 1.RFID badge unlock (CPU card × 2 pcs) 2.App remote unlock 3.Indoor display unlock

Outdoor Doorbell Interface

Audio Input Built-in high-sensitivity microphone

Audio Output Built-in high-power speaker

Doorbell Button 1 doorbell button (Can be set to become illuminated or not).

Terminal Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.

Functions

Tamper Alarm Supports

Video Intercom Long-distance video two-way talk

General

General

Operation Conditions -30°C to 60°C , Humidity 95% or less (non-condensing)

IP Grade Waterproof, with shield cover

Size 153 × 70.4 × 22.5 mm (7.02 × 2.77 × 0.89 inch)

Interior Display

Display size 7” touch screen

Resolution 1024 × 600

Interface

Audio Input Built-in high-sensitivity microphone

Audio Output Built-in high-power speaker

Button Screen On / Off Button

Terminal Two wiring ports to connect 1st outdoor doorbell.

Storage Supports microSD card up to 512 GB Supports EZVIZ Cloud storage

Network Parameters

Interface Protocol EZVIZ Cloud Proprietary Protocol

Protocol EZVIZ Cloud Proprietary Protocol

Protocol EZVIZ Connect Protocol

Wi-Fi Parameters

Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ac

Frequency Range 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz

Channel Bandwidth Supports 20MHz

Security 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK

Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps

Function

Multiple ringtones Up to 20 ringtones

Functions Live view, playback, two-way talk, video call

General

Operation Conditions -10°C to 45°C, humidity 95% or less (non-condensing)

Size 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)

Power Supply DC 24V 1.5A power supply, adaptor (100-240Vac)

Power Consumption 8W, Max. 24W

Products Weight (HP5)

Net Weight 639g (22.54oz)

With Package 1505g (53.09 oz)
