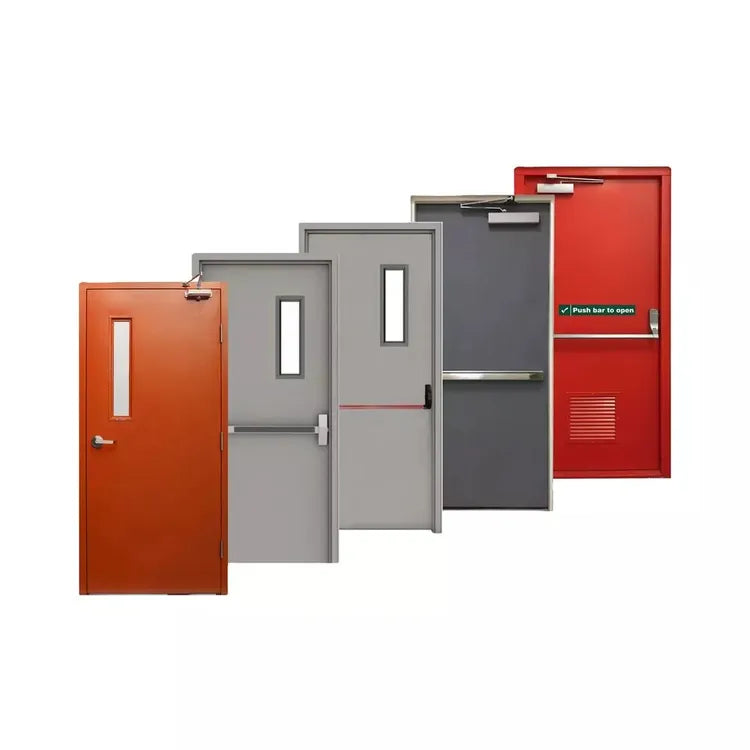

KSP Emergency Exit Door – Certified Fire Rated Safety Door

KSP Emergency Exit Doors & Fire Rated Doors

30–120 Minutes Fire Rating | PCSIR Tested | UL-10C & NFPA-252 Compliant

KSP – Kashif Steel Products manufactures high-performance Emergency Exit Doors and Fire Rated Doors designed to protect lives, property, and infrastructure during fire emergencies. Our doors offer 30 to 120 minutes fire resistance and are third-party tested by the Pakistan Council of Scientific & Industrial Research (PCSIR) in accordance with international fire safety standards UL-10C and NFPA-252.

Test reports for 2-hour fire-rated doors are available upon request.

Fire Risks & Safety Importance

During panic situations, the safety and rescue of building occupants becomes the primary concern. Properly designed emergency exit doors:

Allow fast and safe evacuation

Prevent spread of fire and smoke

Maintain structural compartmentalization

Protect escape routes

Perimeter emergency exits must allow free egress at all times, while also serving as secure exterior access points to maintain building security.

All KSP emergency exit doors comply with building codes, ADA requirements, and fire & life safety standards.

Emergency Exit Door Operational Requirements

KSP emergency exit door systems are designed to meet the following safety standards:

Door remains normally locked for security

Access is gained through valid credentials (if integrated with access control)

Free egress is available at all times

Panic hardware ensures immediate emergency exit

Exit Device Classifications (EN Standards)

Within international standards, emergency exit systems are divided into:

🔹 EN 179 – Emergency Exit Devices

Used in buildings not open to the general public, where occupants understand door operation.

🔹 EN 1125 – Panic Exit Devices

Used in public buildings such as:

Schools

Hospitals

Shopping Malls

Public Offices

KSP door systems offer a comprehensive range of configurations, including integration with additional security, design, and architectural requirements.

Innovative Engineering & Performance

KSP Emergency Exit Doors are designed for flawless performance in all environments and are supported by strong after-sales service.

Installation is simplified through:

Flat mounting design

Polarized locking connectors

Easy hardware integration

With decades of expertise in steel fabrication and safety systems, KSP is a pioneer in Pakistan’s emergency exit and fire-rated door manufacturing industry.

Our doors combine:

Architectural aesthetics

High durability

Structural strength

Long-term operational reliability

They are ideal for industrial, commercial, public, and agricultural applications, regardless of project scale.

General OSHA Guidelines for Emergency Exits

According to OSHA, an exit route must be:

Continuous and unobstructed

Permanent and clearly marked

Properly illuminated

Safety Requirements Include:

Doors must open from inside without keys or tools

Doors must open outward

No revolving or sliding emergency exit doors

Approved by a recognized testing laboratory

Clearly visible “EXIT” signage (minimum 6-inch letters)

Adequate emergency lighting

Exit routes must remain unobstructed

Must lead directly outside or to a safe open area

Minimum height: 6 ft 8 in

Minimum width: 28 inches

KSP ensures all systems are designed to comply with applicable safety regulations.

KSP Fire Rated Door Specifications

Construction

Heavy-duty front gauge steel sheet (as per rating requirement)

Rockwool core filling within door thickness

Door thickness: 45–75 mm

Fire resistance available up to 4 hours

Manufactured in compliance with NFPA 80, NFPA 252, UL 10B & UL 10C

Sizes

Width up to 4’0″

Height up to 8’0″

Single leaf: 44mm thick door leaf

Clear opening up to 1200mm (W) x 2850mm (H)

Maximum surface area: 3.5m²

Double door configuration available

Materials

1.2mm galvanized steel face & back

2mm folded galvanized steel sub-frame

1.2mm galvanized steel frame (Clamp/Wrap-around or Fixed rebate options)

Standard RAL color range

Hardware

Heavy-duty door closer (Dorma TS72 / TS83 / TS93 / ITS96 or equivalent)

3–4 CE marked hinges (EN 1935 Grade 13/14)

Standard lock system

Stainless steel kick plates (200mm standard height)

Glazing & Vision Panels

8mm, 180-minute fire-rated glazing

DDA compliant vision panels available

Non-DDA square and rectangular options

Gaskets

Smoke seal pre-fitted

Tested to BS476 Part 31.1 & BS EN 1634-3

Finish

Factory applied anti-rust primer

Standard RAL paint finish

30% gloss (minimum 40 microns)

Pre-finished 1.2mm steel

Top coat paint recommended after installation.

Manufacturing Capabilities

At KSP’s manufacturing facility, we have the capability to produce:

200+ Emergency Exit Doors per production cycle

Custom sizes and fire ratings

Bulk project supply

Our highly trained technical team provides professional on-site installation services across Pakistan.

Why Choose KSP – Kashif Steel Products?

✔ PCSIR Tested

✔ UL & NFPA Compliant

✔ Custom Manufacturing

✔ Nationwide Supply & Installation

✔ Industrial-Grade Quality

✔ Long-Term Durability

KSP delivers safety, reliability, and architectural excellence in every project.
